Setting up Korg’s logue SDK

At least during the last decade, Korg became a company which constantly generates “Products that customers love™”. From Legacy collection over Kronos to Minilogue, further to the famous Prologue and finally the Minilogue xd, Korg keeps the market busy.

The recent Minilogue xd borrows an outstanding feature from the Prologues. Users can write their very own custom oscillators and effets. To accomplish that, Korg provides the logue SDK via Github.

It is provided “as is”, with no further support, and is not easy to setup. Fortunately Grischa Ekart provides a couple of tutorial videos, the very first one sharing the essentials to get the SDK up and running. From his video, I’ve extracted the crucial steps:

  • Create a folder where you want to place your SDK. Open a terminal window there.
  • git clone
  • cd logue-sdk/
  • git submodule update –init
  • cd tools
  • cd gcc
  • ./

I got an error message, which did not harm the further process at the moment:
./ line 92: popd: directory stack empty

  • cd ..
  • cd logue-cli
  • ./

I got two error messages, which did not harn the further process at the moment:

./ line 35: pushd: /Users/ce/Development/Korg: No such file or directory
./ line 98: popd: directory stack empty

  • cd ./logue-cli-osx-0.07-2b/
  • ./logue-cli
    • The logue-cli is not necessarily required, since one can transfer the files to the minilogue xd via the graphical librarian.

  • cd ..
  • cd ..
  • cd ..
  • cd platform
  • cd minilogue-xd
  • cd demos
  • cd waves
  • make
  • ls waves.waves.mnlgxdunit

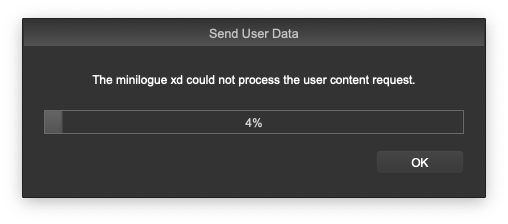

The resulting file waves.mnlgxdunit is a Zip-archive. In my case, the Minilogue xd did not accept this file:

I fixed this by lowering the API version in manifest.json:

  • Change “api” : “1.1-0” to “api” : “1.0-0”
  • Save and close
  • make

Now the file is accepted by the Minilogue xd and works as expected :) .

Thanks a whole bunch to Grischa Ekart for figuring the necessary steps out.

Durations of rendering a PDF on Android

I’m currently exploring the capabilities of a 12.2″ Android tablet to display sheet music in PDF format. The display provides a resolution of 2560 × 1600 Pixels. For rendering, I use the native PdfRenderer of Android. Just for the records, here are some figures of the individual operations:

  • 100-140 ms to create a bitmap to render on.
  • 50-120 ms to render a PDF page to the bitmap.
  • 130-230 ms to copy the bitmap’s pixels to an array.
  • 70-95 ms to search for cropping coordinates in the array to remove whitespace.
  • 50-120 ms to actually crop the bitmap to the found coordinates.

Those figures are valid for sheet music (which is my main interest). They vary significantly depending on the PDF’s content and size.

Android Layout Hints

I’m currently experimenting with the code of Bad Metronome. Since I’m developing natively on a tablet, I need to create the UI by manually editing the XML files, without the support of a user inteface designer tool. Which turned out to be a rather time consuming task. Here are a couple of hints.

Dynamic distribution of widgets

I just wanted to stack three UI elements one above another. I’m using one of the most basic layouts, the LinearLayout in vertical direction. To distribute the widgets equally over the available height, regardless of the screen’s size (handset, tablet), I added empty views above, below, and between the widgets with only the following attributes:


TextView height

One of the three widgets is a TextView. The amount of lines changes during runtime from one up to three. This means the other user interface elements are repositioned while the user interacts with the app. Fortunately, the TextView provides attributes for the amount of minimum and maximum lines:



Icons for ToggleButton

The ToggleButton supports different icons depending on its state. Those can be changed using a selector:


The content of the selctor file may contain the following lines, where the icons name are just files within the resource folders:



Update 2018-06-04

To add spacing between the elements of a linear layout, e.g. in case it gets populated dynamically during runtime, Cyril Mottier shared »Grid Spacing on Android« by creating a drawable like this:
